A BLEND OF PRACTICALITY AND LUXURY
A nation founded upon the principles of family and the quality of life and a company embarking on a journey to assist its customers to create cherished family memories. The iDeal Voyager is crafted by the iDeal family to help you and your loved ones explore the beauty that is Australia this holiday season. Let us help you make the most of your voyager. A blend of practicality and luxury, the Voyager should be your choice for holidaying.

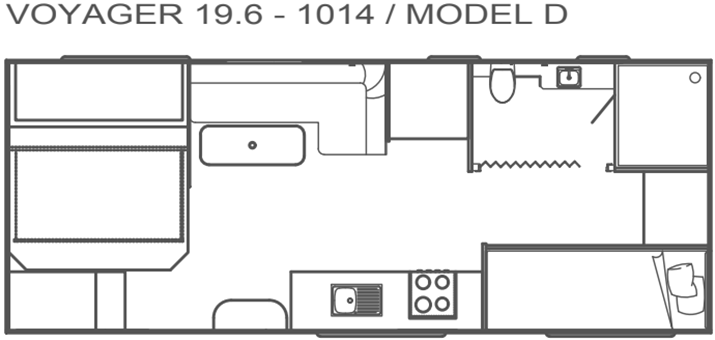

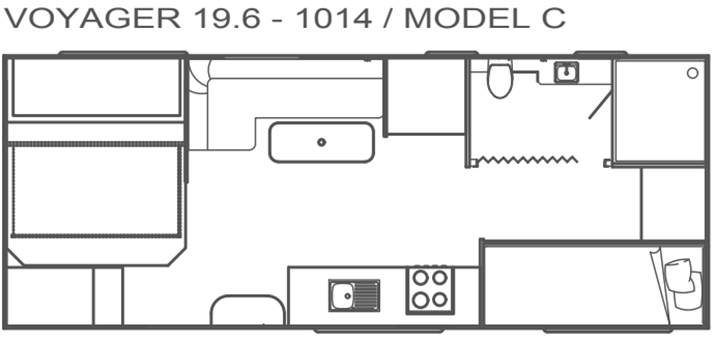

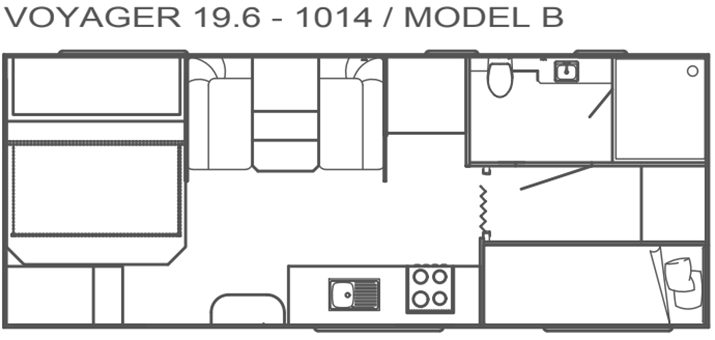

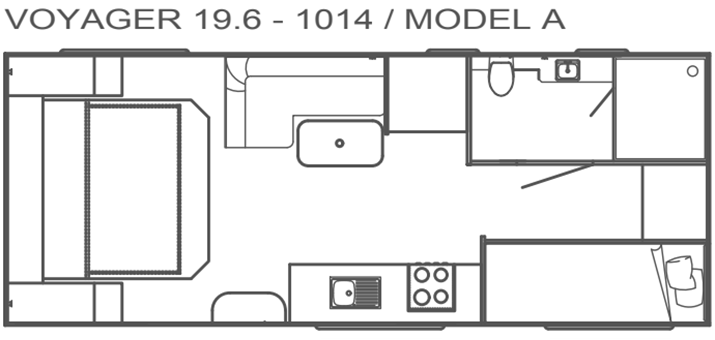

layouts to choose from
VOYAGER 19.6" - (1014)
- Dimensions
- Overall Body Length: 19.6ft
- External Width:
- External Height:
- Internal Height:
- Tare:
- Tow Ball:
- Weights
- ATM:
- GTM:
- Payload:
SPECIFICATIONS
VOYAGER 196 ( MODEL 1014 )
NOTE - FEW NON STANDARD INCLUSIONS HAVE ADDED FOR DISPLAY PURPOSE
INTERIOR
| VOYAGER 196 XT ON ROAD | VOYAGER 196 VX SEMI OFF ROAD | VOYAGER VX - EXTREME FULL OFF ROAD | |
| MODERN L SHAPE / CAFE LOUNGE | ✔ | ✔ | ✔ |
| BED HEAD - FULL HEIGHT | ✔ | ✔ | ✔ |
| BED - QUEEN ISLAND / EAST WEST / STORAGE UNDERNEATH ( NO LIFTUP ) | ✔ | ✔ | ✔ |
| UPHOLSTERY –FAUX LEATHER | ✔ | ✔ | ✔ |
| BENCH TOP - LAMINATE SQUAIRE EDGE / ROLLED | ✔ | ✔ | ✔ |
| BENCH TOP - OVER STOVE | ✔ | ✔ | ✔ |
| CUPBOARD DOOR COLOUR - NX RANGE | ✔ | ✔ | ✔ |
| DOOR - TRIPLE LOCK / SECURITY SCREEN -CAMEC | ✔ | ✔ | ✔ |
| DRAWERS - ON ROLLERS STEEL SIDED / PLASTIC BASE | ✔ | ✔ | ✔ |
| FLOOR VINYL - DURABLE MODERN DESIGN - SIGNATURE OR KONSOL | ✔ | ✔ | ✔ |
| HANDLES - SHELL LOCK / VOGUE / HIDDEN | ✔ | ✔ | ✔ |
| HINGES – PIANO | ✔ | ✔ | ✔ |
| KITCHEN - STRAIGHT | ✔ | ✔ | ✔ |
| MATTRESS –QUEEN PILLOWTOP | ✔ | ✔ | ✔ |
| SPLASHBACK (KITCHEN) - LAMINEX FULL HEIGHT | ✔ | ✔ | ✔ |
| TAPS - FLICK MIXER | ✔ | ✔ | ✔ |
| TOILET - THETFORD PLASTIC BALL | ✔ | ✔ | ✔ |
| TOILET ROLL HOLDER | ✔ | ✔ | ✔ |
| TV BRACKET | ✔ | ✔ | ✔ |
| WINDOWS - AUSSIE TRAVELER EV 1 | ✔ | ✔ | ✔ |
| NUMBER OF BUNKS- 1 , 2 , 3 OR ( 4 EXTRA COST ) | ✔ | ✔ | ✔ |
| END OF BUNK STORAGE | ✖ | ✖ | ✖ |
| UNDER BUNK STORAGE - INTERNAL 2 DOOR ACCESS | ✔ | ✔ | ✔ |
| SMALL MAG POCKETS IN EACH BUNK | ✔ | ✔ | ✔ |
| BUNK FACIA | ✔ | ✔ | ✔ |
| SLIDEOUT PANTRY | ✖ | ✖ | ✖ |
EXTERIOR
| VOYAGER 196 XT ON ROAD | VOYAGER 196 VX SEMI OFF ROAD | VOYAGER VX - EXTREME FULL OFF ROAD | |
| A-FRAME EXTENDED ( 1850MM ) | ✔ | ✔ | ✔ |
| A FRAME TRAY | ✔ | ✔ | ✔ |
| ANTENNA – WINEGARD | ✔ | ✔ | ✔ |
| AWNING - ROLL-OUT BLACK | ✔ | ✔ | ✔ |
| GAS BOTTLES - 2 X 9KG | ✔ | ✔ | ✔ |
| STAINLESS STEEL GRAB HANDLES (FRONT & BACK) | ✔ | ✔ | ✔ |
| ALKO 3.5T/ 50 MM STD HITCH - TOP MOUNT | ✔ | ✖ | ✖ |
| DO35 HITCH - BOT MOUNT | ✖ | ✔ | ✔ |
| JACK - CNR SUPPORTS (DROP DOWN) | ✔ | ✔ | ✔ |
| 9'' JOCKEY WHEEL - SIDE WINDER - ONLY WITH THE STONE SHIELD | ✖ | ✖ | ✖ |
| 9'' JOCKEY WHEEL - TOP WINDER | ✔ | ✔ | ✔ |
| SPARE WHEEL 1 X | ✔ | ✔ | ✔ |
| SPARE WHEEL - 1 X FRONT | ✖ | ✖ | ✖ |
| PICNIC TABLE (FOLD-OUT) | ✔ | ✔ | ✔ |
| STEP SINGLE PULL-OUT | ✔ | ✔ | ✔ |
| TAP (ON A-FRAME) | ✔ | ✔ | ✔ |
| TUNNEL BOOT (FRONT) | ✔ | ✔ | ✔ |
| TYRES – 232 X 75R15 AT | ✖ | ✖ | ✖ |
| TYRES – 245 X 75R16 AT OR MT | ✔ | ✔ | ✖ |
| TYRES – 265 X 75R16 AT OR MT | ✖ | ✖ | ✔ |
| WHEELS - 15" ALLOY ( 6 STUD LC ) | ✖ | ✖ | ✖ |
| WHEELS - 16" ALLOY ( 6 STUD LC ) | ✔ | ✔ | ✔ |
| REVERSE CAMERA | ✔ | ✔ | ✔ |
| UNDER BUNK STORAGE - EXTERNAL MODEL 5 DOOR ACCESS (1 OR 2 BUNKS ONLY) | ✔ | ✔ | ✔ |
APPLIANCES
| VOYAGER 196 XT ON ROAD | VOYAGER 196 VX SEMI OFF ROAD | VOYAGER VX - EXTREME FULL OFF ROAD | |
| AIR CONDITIONING – GREE ROOFTOP 3.5KW | ✔ | ✔ | ✔ |
| FRIDGE / FREEZER - THETFORD - 199L 3WAY | ✔ | ✔ | ✔ |
| SWIFT MINI GRILL - 3 GAS / 1 ELECTRIC BURNER | ✔ | ✔ | ✔ |
| NCE MICROWAVE 25 LITRE | ✔ | ✔ | ✔ |
| RANGE HOOD - 12V LED W SINGLE FAN | ✔ | ✔ | ✔ |
| STEREO CD/DVD/MP3/RADIO SYSTEM | ✔ | ✔ | ✔ |
| TV - 24" LED / LCD | ✔ | ✔ | ✔ |
PLUMBING
| VOYAGER 196 XT ON ROAD | VOYAGER 196 VX SEMI OFF ROAD | VOYAGER VX - EXTREME FULL OFF ROAD | |
| BASIN (ENSUITE) - CERAMIC | ✔ | ✔ | ✔ |
| SPACIOUS SHOWER - MODEL 32 | ✔ | ✔ | ✔ |
| SINGLE BOWL S.STEEL SINK | ✔ | ✔ | ✔ |
| WASHING MACHINE - 3.5KG FRONT LOADER | ✔ | ✔ | ✔ |
| SWIFT HOT WATER SERVICE – 21 LTR GAS/ELECTRIC | ✔ | ✔ | ✔ |
| WATER TANKS - 2 X 95LTR | ✔ | ✔ | ✔ |
| GAS BAYONET | ✔ | ✔ | ✔ |
ELECTRICAL
| VOYAGER 196 XT ON ROAD | VOYAGER 196 VX SEMI OFF ROAD | VOYAGER VX - EXTREME FULL OFF ROAD | |
| PROJECTA PM 300 BT BATTERY MANAGEMENT | ✔ | ✔ | ✔ |
| HATCH ROOF (LED) – 1 X 450MM X 400MM | ✔ | ✔ | ✔ |
| HATCH ROOF (LED) – 1 X 500MM X 700MM | ✔ | ✔ | ✔ |
| HATCH SHOWER ( LED POWER ) 320MM X 320MM | ✔ | ✔ | ✔ |
| LIGHTING - LED DOWNLIGHTS | ✔ | ✔ | ✔ |
| TV CO-AX POINT | ✔ | ✔ | ✔ |
| USB POINTS - 3 X | ✔ | ✔ | ✔ |
| SPEAKERS - 2 X INTERNAL | ✔ | ✔ | ✔ |
| SPEAKERS - 2 X EXTERNAL | ✔ | ✔ | ✔ |
| BBQ LIGHT | ✔ | ✔ | ✔ |
| LIGHT - 2 X LED ANNEXE / BUG | ✔ | ✔ | ✔ |
| LIGHTS - LED FRONT / REAR | ✔ | ✖ | ✖ |
| LIGHTS - LED MAX BAR FRONT / REAR | ✖ | ✔ | ✔ |
| LIGHT - DOOR HANDLE BARGMAN | ✔ | ✔ | ✔ |
| PLUG CAR - 12 PIN | ✔ | ✔ | ✔ |
| ONE GRAY ANDERSON TO CHARGE BATTRIES - FOR COMP . FRIDGE ONLY | ✖ | ✖ | ✖ |
| ONE GRAY ANDERSON TO RUN THE FRIDGE - FOR 3 WAY FRIDGE ONLY | ✖ | ✖ | ✖ |
| SECOND GRAY ANDERSON TO TO FEED BMS - FOR 3 WAY FRIDGE ONLY | ✖ | ✖ | ✖ |
| POWER - 12V WEATHER PROOF CIG SOCKET | ✔ | ✔ | ✔ |
| SOLAR SYSTEM - 2 X 210 WATT PANELS | ✔ | ✔ | ✔ |
| BATTERY - 2 X 100AMP DEEP CYCLE | ✔ | ✔ | ✔ |
SUSPENSION
| VOYAGER 196 XT ON ROAD | VOYAGER 196 VX SEMI OFF ROAD | VOYAGER VX - EXTREME FULL OFF ROAD | |
| LIGHT WEIGHT HOLLOW BEAM AXLES 2 T RATING EACH | ✔ | ✖ | ✖ |
| 3.5T RATING SEMI OFF SUSPENSION | ✖ | ✔ | ✖ |
| 3.5T RATING FULL OFF ROAD SUSPENTION | ✖ | ✖ | ✔ |
| 10'' ELECTRIC BRAKES | ✖ | ✖ | ✖ |
| 12'' ELECTRIC BRAKES | ✔ | ✔ | ✔ |
CONSTRUCTION
| VOYAGER 196 XT ON ROAD | VOYAGER 196 VX SEMI OFF ROAD | VOYAGER VX - EXTREME FULL OFF ROAD | |
| 6 '' A - FRAME UP TO AXLES | ✔ | ✔ | ✔ |
| AXLE – DOUBLE | ✔ | ✔ | ✔ |
| CHASSIS - 4" DURA-GAL ( DECK ) + RAISER | ✖ | ✖ | ✖ |
| CHASSIS - 4" DURA-GAL ( DECK ) + RAISER DEPEND ON SUSPENTION TYPE | ✖ | ✖ | ✖ |
| CHASSIS - 6" DURA-GAL ( DECK ) + RAISER DEPEND ON SUSPENTION TYPE | ✖ | ✖ | ✖ |
| CHASSIS - 6'' DURA-GAL ( DECK ) + RAISER 6'' (FLAT FLOOR NO WHEEL BOX ) + 2 '' | 6' + 6'+2' | 6' + 6'+2' | 6' + 6'+2' |
| COMPOSITE FRONT BACK & SIDES | ✔ | ✔ | ✔ |
| FRAME - 18 MM CNC INTERLOCK FULL SHEETS | ✔ | ✔ | ✔ |
| INSULATION (WALLS & ROOF) | ✔ | ✔ | ✔ |
PROTECTION
| VOYAGER 196 XT ON ROAD | VOYAGER 196 VX SEMI OFF ROAD | VOYAGER VX - EXTREME FULL OFF ROAD | |
| CHECKER PLATE (FRONT APPROX) 1150MM - BLACK | ✔ | ✔ | ✔ |
| CHECKER PLATE (SIDES APPROX) 600MM - BLACK | ✔ | ✔ | ✔ |
| CHECKER PLATE (BACK APPROX) 1050MM - BLACK | ✔ | ✔ | ✔ |
| BRAKES - ELECTRIC BRAKEWAY SYSTEM / OR BMPRO TRAILSAFE | ✔ | ✔ | ✔ |
SAFETY
| VOYAGER 196 XT ON ROAD | VOYAGER 196 VX SEMI OFF ROAD | VOYAGER VX - EXTREME FULL OFF ROAD | |
| SMOKE ALARM | ✔ | ✔ | ✔ |
| RCD PROTECTION | ✔ | ✔ | ✔ |
| RCD PROTECTION ( DOUBLE ) - ONLY IF INVERTER PROVISION IS THERE | ✖ | ✖ | ✖ |
NON STANDARD INCLUSIONS
| VOYAGER 196 XT ON ROAD | VOYAGER 196 VX SEMI OFF ROAD | VOYAGER VX - EXTREME FULL OFF ROAD | |
| TOOL BOXES - SMALL , MED , LARGE & CUSTOM | ✔ | ✔ | ✔ |
| A FRAME EXTENTION ( 1850 STD , 1950 AND 2100 ) | ✔ | ✔ | ✔ |
| BIKE RACKS ( FRONT & REAR ) | ✔ | ✔ | ✔ |
| G. WATER TANK | ✔ | ✔ | ✔ |
| DUST REDUCTION SYSTEMS | ✔ | ✔ | ✔ |
| FANS | ✔ | ✔ | ✔ |
| ANTI THEFT SECURITY SYSTEM | ✔ | ✔ | ✔ |
| SWIFT FULL STOVE | ✔ | ✔ | ✔ |
| COMP . FRIDGES / BUSHMAN 12V ONLY | ✔ | ✔ | ✔ |
| DEXTER SWAY CONTROLS | ✔ | ✔ | ✔ |
| ENTERTAINMENT BOX | ✔ | ✔ | ✔ |
| DIESEL / GAS HEATER | ✔ | ✔ | ✔ |
| HOT DIP GAL CHASSIS | ✔ | ✔ | ✔ |
| EXTERIOUR COLOURS GOLD , BRONZ AND COPPER ETC ETC | ✔ | ✔ | ✔ |
| EXTERNAL SHOWER | ✔ | ✔ | ✔ |
| CONCERTINA DOOR AS A DEVIDER | ✔ | ✔ | ✔ |
| GAS BOTTLES & JERRY CANS ON A FRAME | ✔ | ✔ | ✔ |
| ROCK SLIDERS | ✔ | ✔ | ✔ |
| WINDOWS - AUSSIE TRAVELER EV 02 | ✔ | ✔ | ✔ |
| BLACK PACK | ✔ | ✔ | ✔ |
| EAGER BRAND - WOOD GRAIN SQUAIRE EDGE BENCH TOPS | ✔ | ✔ | ✔ |
| JERRY CANS ON BUMPER BAR | ✔ | ✔ | ✔ |
